Overhead Crane Radio Controls
Overhead Crane Modernisation
Radio controls for overhead cranes offer an effective way to operate your existing lifting equipment. Remote control units improve safety for the user by enabling them to operate the crane in a position of better visibility and therefore reduced operational risk.
Radio control systems for overhead cranes are modern in their design, ergonomic and wireless. This enables more comfortable control for the crane operator, they can stand at a safe distance and benefit from using a better vantage point.
Street Sabre Crane and
Hoist Controller
Introducing the Street Crane Co., Sabre. This extremely versatile system is manufactured in the UK and is easily integrated into your existing controls, maintaining all previous functions including emergency stop. It can be retrofitted onto any crane make or model.
Your input into the radio remote control is transmitted and received instantly by the receiver, which then controls the crane or hoist to carry out your task.
Improve your productivity and safety with Street Sabre
Robust Communication
Automatic frequency hopping technology is used to offer extremely secure signalling with minimal RF interference. This adds an additional level of security and safety to the system and also allows up to 50 controllers to operate simultaneously within a single factory.
In-Built Safety
- The Street Sabre from Street Crane Co (link) provides robust performance and safety compliance, protecting operators, equipment, and load.
- Wireless emergency stop certified SIL 2 PL d.
- IP65 ingress protection
- Aligned with the latest crane control safety standards.
- Optional command monitoring for protection against unintended operation.*
Ergonomic design with intuitive controls

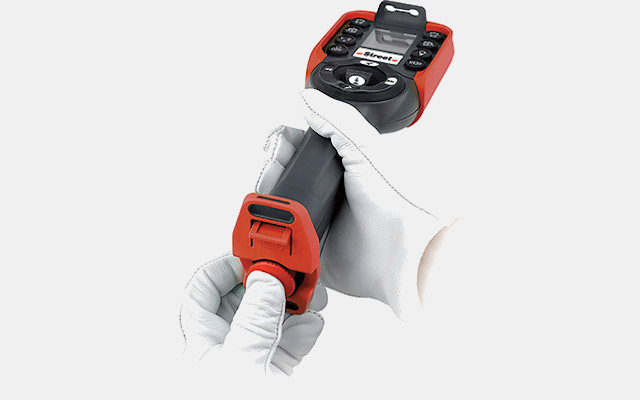

The Street Sabre features a unique and innovative control handset that provides the operator with comfortable, single-handed operation. Unlike conventional push button systems, this design allows the operator to naturally select the correct command for the required crane operator, without taking their eyes off the load and thus increasing lifting safety significantly. Push button pressures are also designed to help reduce operator fatigue through continuous and repetitive use.
Availability
Thanks to the innovative battery technology, charging time is only 15 minutes for a full charge, and a mere 5 minutes of charging time is sufficient for 4 hours of continuous operation. This highly efficient system negates the need for any back up. The average estimated life expectancy of a Street Sabre battery is about 5 years, which is at least twice that of a traditional battery.
Wireless Remote Control
Discover the Street Sabre range of hoisting control solutions.
- Sabre 1 – 8 pushbuttons (2 auxiliary) LED indicators / 12 output relays
- Sabre 2 – 8 pushbuttons (2 auxiliary) display / 18 output relays, 18 digital inputs
- Sabre 3 – 12 pushbuttons (6 auxiliary) display / 18 output relays, 18 digital inputs
Globally Compatible
Street Sabre uses 2.4GHz frequency, allowing the operator to deploy the same system solution worldwide and enabling group standardisation for operator familiarity and spare parts commonality. Automatic “frequency hopping” technology also eliminates interference between multiple remote control stations, allowing up to 50 systems to run simultaneously.
Flexibility
- Simple plug-in system for ease of installation on new crane and upgrade work on existing cranes.
- Optional display with configurable diagnostics and up to 6 configurable alarms*
- Optional alarm warnings with notifications via handset vibrate function*
Other Options
In addition to the out-of-the-box, ‘plug and play’ systems, customised radio controls are available.
Other options include:
- Tandem crane/hoist control
- Master/slave crane operation
- Joystick or pushbutton options
- Process automation assigned to bespoke buttons.
- Modifications to existing radios
- Electromagnets and vacuum frame control
- Contactless Safety Keys
- LCD Screens
- Potentiometer Controls
- Trigger Selectors
- Toggle Switches
We offer a comprehensive range of makes & models.
In addition to the Street Sabre, we supply:
- Ikusi
- HBC
- Cattron
- Wave
- Telecrane
Get a Quote today
Expert solutions from the industry leaders – As part of Street Cranexpress’ upgrade and refurbishment services, we also provide radio control conversion at an affordable price.
We supply and install radio remote control systems to all types of lifting equipment, with fast lead times and as little disruption to your operation as possible.
